Ball Valves

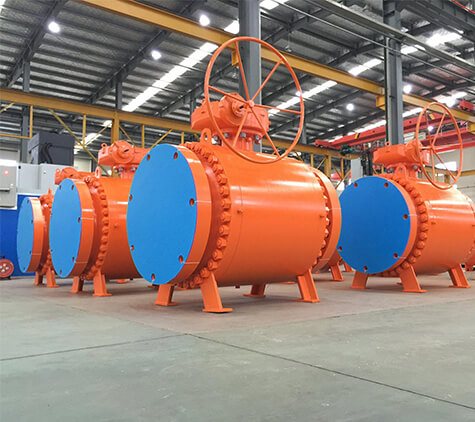

Valmark has an extensive experience in supplying of Trunnion Mounted, Side & Top Entry Ball Valves, both Soft and Metal Seated.

2” up to 56“ (DN 50 up to DN 1400)

ASME 150# to 2500#, API 3000PSI to 20000PSI

Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, Titanium Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay

API 6D, API 608, MESC SPE 77 / 130 API6DSS, MESC SPE 77/210

ASME B 16.34

API6DSS, API 598, API 6D, ISO 5208, MESC SPE 77/132, 77 / 300, 77/312, 77/200, 77/210, API 6FA, ISO 10497, API607, ISO 15848-1&2, BS 6364

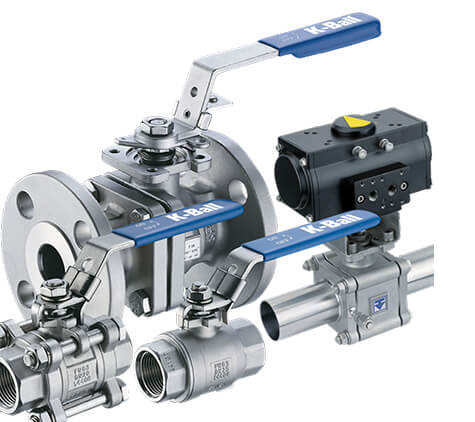

Single / Two / Three Piece Design / Side Entry / Trunnion / Block & Bleed / Soft and Metal Seated

Screwed, Socket Weld, Flanged, Hub End, Butt-Weld

Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised)

Cryogenic Design

Subsea Design

Stem Extension

Single & Double Piston Seat Design

Primary Metal and Secondary Soft Seat Design

Emergency Seat and Stem Lubricant Injection
